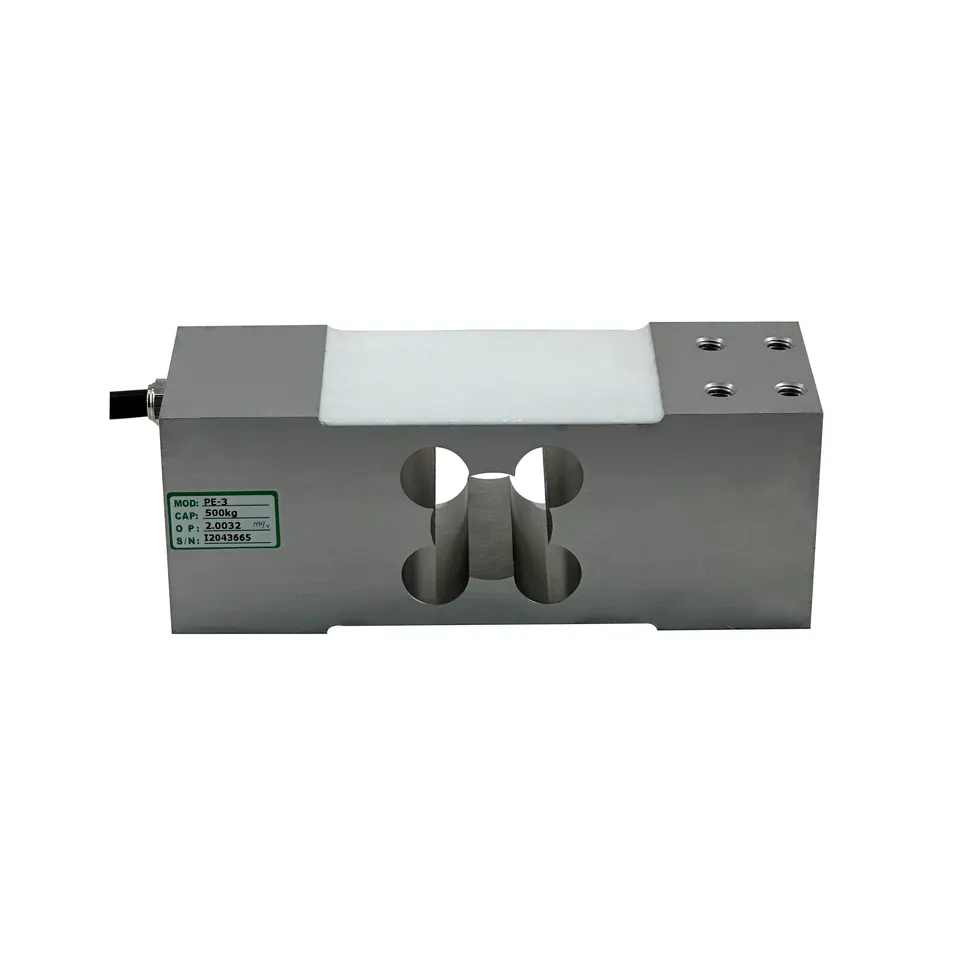

PE-3 box-type single point load cell for platform scales
PE-3 Single Point Load Cell is a box-type sensor designed for electronic scales and general industrial weighing. Each cell is corner-adjusted before shipping, so the output stays consistent across the stated load plane.
With capacities from 60 kg to 500 kg and a recommended platform of 600 x 600 mm, the PE-3 suits bench scales, packing scales, counting scales, checkweighers and OEM platform systems.
| 60 – 500 kg | 600 x 600 mm | Corner adjusted | Moisture seal |
Product overview
The PE-3 uses a box-type single point structure for medium-capacity platform scales. Its mechanical design gives a stable output, straightforward mounting and dependable performance in ordinary industrial weighing systems.
| Key feature | Why it matters |
|---|---|
| Box-type single point structure | Supports platform scale designs with a defined load plane. |
| Corner adjusted before shipping | Keeps performance consistent wherever the load sits on the platform. |
| 60 kg to 500 kg range | Covers bench scales, checkweighers, packing scales and OEM equipment. |
| Moisture-sealed design | Holds up better in the damp conditions common to industrial weighing. |
Typical applications
| Platform scales | Packing scales | OEM systems |
| Bench scales and counting scales | Checkweighers and process weighing | Industrial weighing equipment manufacturers |
Specifications
| Rated output | 2 ± 0.2 mV/V | Input resistance | 410 ± 10 Ω |
|---|---|---|---|
| Non-linearity | ±0.02% FS | Output resistance | 350 ± 3 Ω |
| Hysteresis | ±0.02% FS | Insulation resistance | ≥ 5000 MΩ |
| Repeatability | ±0.01% FS | Excitation voltage | 10 V DC/AC |
| Creep, 30 min | ±0.02% FS | Compensated temperature | -10°C to +50°C |
| Zero balance | ±1.00% FS | Operating temperature | -20°C to +60°C |
| Temperature effect on zero | ±0.02% FS / 10°C | Safe overload | 120% FS |
| Temperature effect on output | ±0.02% FS / 10°C | Cable | Ø5 x 3 m / 5 m optional |
| Cable colour code | Input: red (+), black (-) / Output: green (+), white (-) | ||
Capacities and platform size
| Available capacities | 60 kg, 100 kg, 150 kg, 250 kg, 300 kg, 500 kg |
|---|---|
| Recommended platform size | 600 x 600 mm |
| Load cell type | Box type, single point |
| Applied load plane | Corner adjusted before shipping |
Dimensions
All dimensions in millimetres.
| Overall length | 173.7 mm | Centre body length | 120.5 mm |
|---|---|---|---|
| Mounting end spacing | 19 mm each side | Edge distance | 7.6 mm |
| Body width | 60 mm | Mounting hole spacing | 30 mm / 45 mm |
| Mounting holes | 8 x M8, 22 mm deep | Load plane length | 88.9 mm |
| Cable exit height | 8 mm | Cable | Ø5 x 3 m / 5 m optional |
Wiring colour code
| Red | Input + / Excitation + | Black | Input – / Excitation – |
| Green | Output + / Signal + | White | Output – / Signal – |
Installation notes
- Mount the PE-3 on a flat, solid, clean surface.
- Use M8 mounting bolts of the correct grade for the structure.
- Keep the applied load within the specified load plane.
- Avoid side loads, torsion, shock loading and overload.
- Protect the moisture seal and the cable from mechanical damage.
- Do not weld near the load cell without proper electrical protection.
- Calibrate after installation.
Frequently asked questions
| What capacities are available? | 60 kg, 100 kg, 150 kg, 250 kg, 300 kg and 500 kg. |
|---|---|
| What platform size is recommended? | 600 x 600 mm. |
| Is the PE-3 corner adjusted? | Yes. Every PE-3 is corner adjusted before shipping so the output stays consistent across the stated load plane. |
Product enquiries
UNICELL Sensors handles availability, quotations, technical support, replacement guidance and OEM platform projects for the PE-3 load cell.
For a replacement or a new build, tell us the capacity you need, the platform size, what the scale weighs and in what conditions, and the load cell you are replacing if there is one. We will confirm whether the PE-3 fits the application before you order.
UNICELL Sensors | unicellsensors@gmail.com
All specifications are subject to change without notice.
