Load Cells

UniCell Sensors designs and supplies precision load cells for heavy industry — engineered for truck scales, tank and hopper weighing, and industrial process control, backed by OIML R60, CE, ISO 9001:2015, and NTEP certification.

1. Choosing the right load cell type
Type Typical application

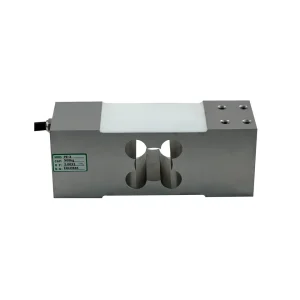

Single Point Bench and retail scales, packaging lines

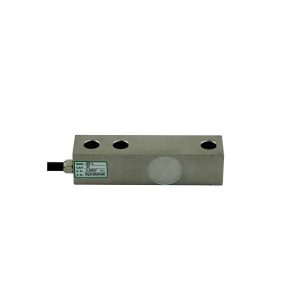

Shear Beam Floor scales, pallet scales, small tank scales
S-Type Crane scales, tension and compression force testing
Weigh Bridge Load Cells Truck scales and large-capacity platforms
2. Certified accuracy and protection
  • • OIML R60 accuracy classes C3, C5, and C6
  • • IP68 / IP69K protection for washdown and outdoor environments
  • • CE and RoHS compliant construction
  • • NTEP approved for legal-for-trade applications in the US
2. Digital and analog options

Digital load cells communicate over RS485 at distances up to 1200 meters, simplifying wiring on large truck scale installations and reducing signal loss compared to analog summing. Analog load cells remain a cost-effective choice for shorter cable runs and simpler installations.

3. Selection guidance

Match load cell capacity to your platform’s expected load with an appropriate safety margin, and select a construction (alloy steel or stainless steel) and protection rating suited to your operating environment. Our engineering team can help you specify the right load cell for your scale design.

UniCell Sensors provides engineering consultation and worldwide supply of certified load cells.
