Shear beam load cell for industrial weighing systems

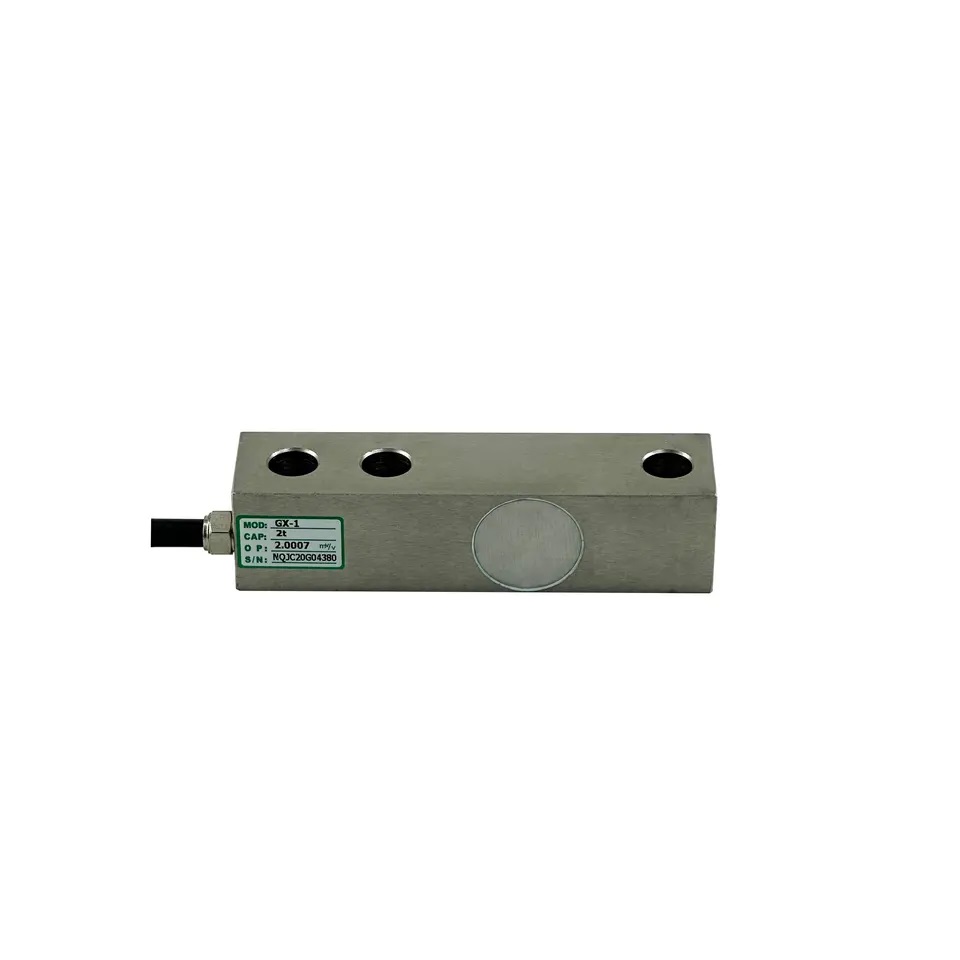

GX-1 Shear Beam Load Cell
UNICELL Sensors Industrial Load Cell Solutions
UNICELL Sensors GX-1 is a shear beam load cell designed for industrial weighing applications that require stable output, easy installation and reliable service performance.
With one-end fixed structure, good sealing performance and strong interchangeability, GX-1 is suitable for truck scales, hopper scales, crane scales, platform scales and process weighing systems.
This product is recommended for scale manufacturers, service companies, OEM weighing equipment builders and industrial automation integrators.
| Shear Beam | Easy Installation | Truck Scales | Good Sealing |
Product Overview
The GX-1 load cell is engineered for stable and accurate weight measurement in demanding industrial environments. Its compact shear beam design provides reliable performance, simple mounting and long service life.
| Main feature | Practical value |
|---|---|
| Shear beam structure | Stable force transfer for industrial weighing applications. |
| One-end fixed design | Simple mechanical installation with defined load direction. |
| Good sealing and protection | Supports reliable operation in industrial environments. |
| Excellent interchangeability | Useful for OEM production, replacement and service projects. |
Applications
| Application | Typical use |
|---|---|
| Electronic truck scales | Weighbridge and low-profile truck scale systems. |
| Hopper scales | Material weighing and process weighing systems. |
| Crane scales | Industrial force and load measurement applications. |
| Platform scales | General industrial weighing and OEM scale building. |
Electrical Specifications
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated output | 2.00 ± 0.01 mV/V / 3.00 ± 0.01 mV/V | Input resistance | 385 ± 10 Ω |
| Nonlinearity | ±0.02% FS | Output resistance | 350 ± 3 Ω |
| Hysteresis | ±0.02% FS | Insulation resistance | ≥ 5000 MΩ |
| Repeatability | ±0.01% FS | Excitation voltage | 10 V DC/AC |
| Creep / 30 min | ±0.02% FS | Compensated temperature | -10°C to +50°C |
| Zero balance | ±1.00% FS | Operating temperature | -20°C to +60°C |
| Temperature effect on zero | ±0.02% FS / 10°C | Safe overload | 120% FS |
| Temperature effect on output | ±0.02% FS / 10°C | Cable | Ø5 × 5 m |
Capacity and Dimensions
The GX-1 load cell is available in multiple capacities for different weighing applications. Dimensions are shown in millimeters.
| Capacity | lb | A | B | C | D | E | F | Ø | Thread M |
|---|---|---|---|---|---|---|---|---|---|
| 0.05 – 2 t | 100 – 5K | 130 | 32 | 15.7 | 25.4 | 76.2 | 57 | 13.5 | M12 × 1.75 / 1/2-20 |
| 2.5 – 5 t | 5 – 10K | 171.5 | 38 | 19.1 | 38 | 95.25 | 76 | 20 | M18 × 1.5 / 3/4-16 |
| 7.5 – 10 t | 15 – 20K | 222.3 | 50.8 | 25.4 | 50.8 | 123.8 | 102 | 26.2 | M24 × 2 / 1-14 |
Wiring Color Code
| Function | Cable color |
|---|---|
| Excitation + / Input + | Red |
| Excitation – / Input – | Black |
| Signal + / Output + | Green |
| Signal – / Output – | White |
Installation Notes
- Install the load cell on a flat and rigid mounting surface.
- Keep the load direction vertical and centered.
- Avoid side force, twisting force and impact loading.
- Use proper mounting accessories for truck scale or hopper scale systems.
- Protect the cable from mechanical damage and moisture.
- Perform calibration after installation.
Request Product Information
Contact UNICELL Sensors for GX-1 load cell availability, technical support, replacement guidance and quotation.
Genuine Products, Reliable Technical Support
www.unicellsensors.com | unicellsensors@gmail.com
All specifications are subject to change without prior notice.
